Quick Details

  • Products Status: Stock
  • Type: Barcode Scanner
  • Scan Element Type: CMOS
  • Colour Depth: 16 Bit
  • Interface Type: COM, PS/2, USB
  • Max Paper Size: A4
  • Optical Resolution: 752x480
  • Scan Speed: 60fps
  • Brand Name: SuperMax
  • Model Number: 5100
  • Place of Origin: Jiangsu, China (Mainland)
  • Color: Black/Cream White/Others
  • Type1: Supermarket Barcode Scanner
  • Type2: barcode Scanner 2d
  • Type3: Android Barcode Scanner
  • Type4: Handheld barcode scanner
  • Type5: barcode scanner android
  • Type6: barcode scanner
  • Type7: 2d barcode scanner
  • Type8: qr code Scanner
  • Type9: pos barcode scanner

Packaging & Delivery

Packaging Details TBD
Delivery Time Shipped in 3 days after payment

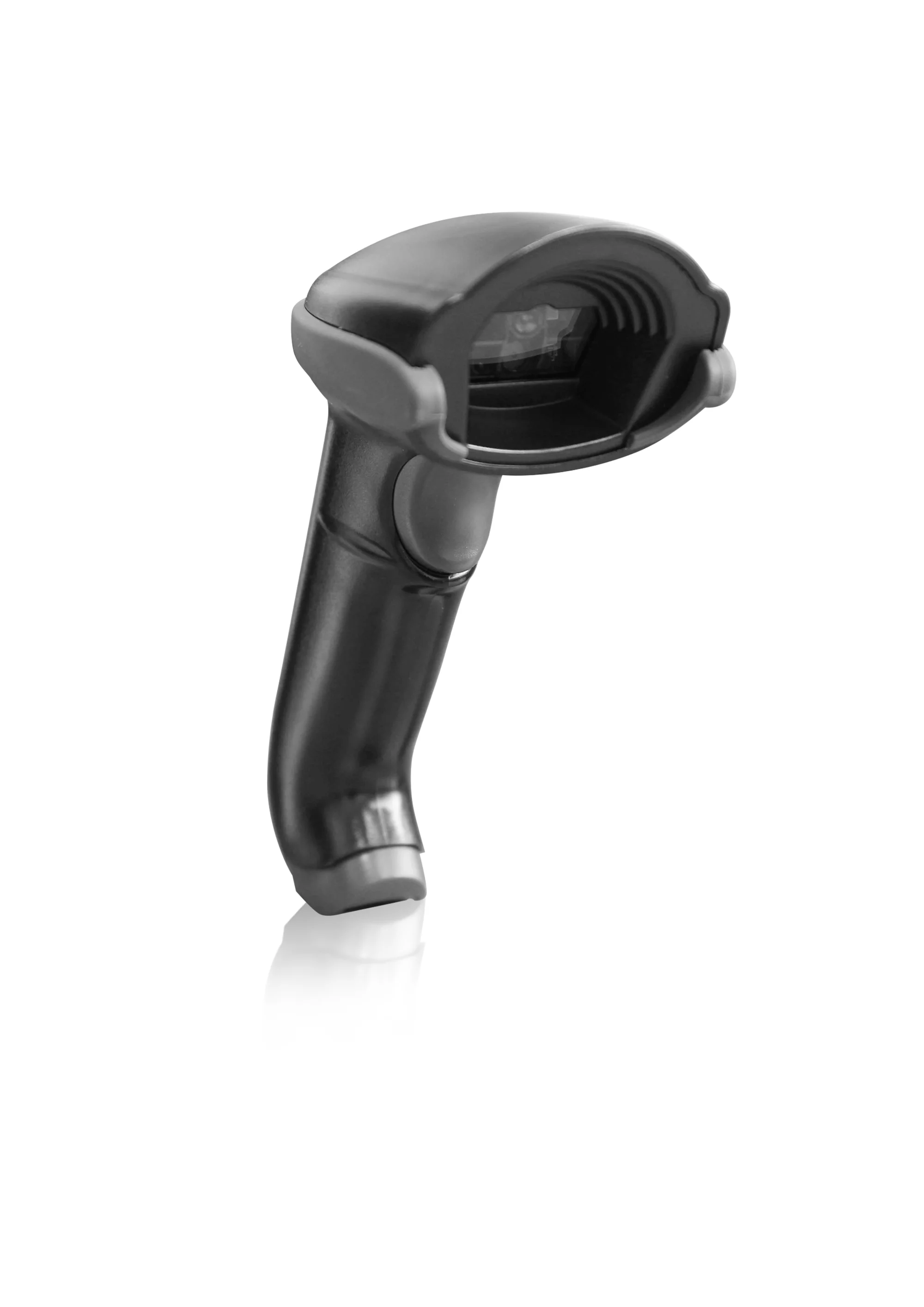

Superlead 5100S Supermarket POS QR Code Scanner 2D USB/RS232 Barcode Scanner High Quality


Physical Characteristics
Dimensions:18 cm H x 10.7cm L x 7 cm W
Voltage and Current:5 VDC +/-10% @ 400 mA
Performance Characteristics
Image (Pixels):640 pixels (H)x 480 pixels (V)
Light Source:Aiming: 617 nm LED; illumination: 625 nm LED
Field of View:40° (H) x 26° (V)
Roll / Pitch / Yaw:360°, ±65°, ±60°
Print Contrast:25% minimum reflective difference
Symbology Decode Capability
1-D:UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2-D:PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Motion Tolerances:up to  25 in. (63.5 cm) per second 2D barcode scanner
Interfaces Supported:USB, RS232
User Environment
Operating Temperature:32° to 122° F / 0° to 50° C
Storage Temperature:-40° to 158° F / -40° to 70° C
Humidity:5% to 95%, non-condensing
Drop/Shock Specifications:Withstands multiple 1.5m(6ft.) drops to concrete
Ambient Light Immunity:Immune to normal indoor lighting up to 1600 Lux.
Immune to sunlight up to 86,000 Lux.
Decode Ranges
Symbol & DensityRange
Code 39 (5 mil)40mm-110mm
100%UPCA (13 mil)5mm-280mm
COde 39 (20 mil)15mm-330mm
PDF417 (6.8mil)20mm-130mm
DataMatrix (10mil)10mm-110mm
QR Code (20mil)5mm-230mm
Resolution 1D Code 394.8mil (0.122mm)
Resolution 2D Data Matrix6.6mil (0.168mm)
Performance may be impacted by bar code quality and environmental conditions
