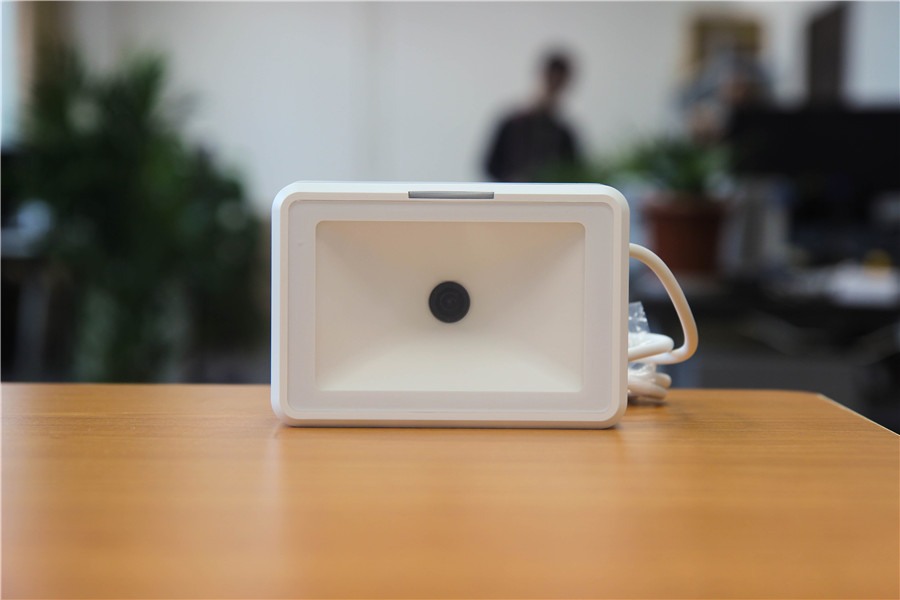

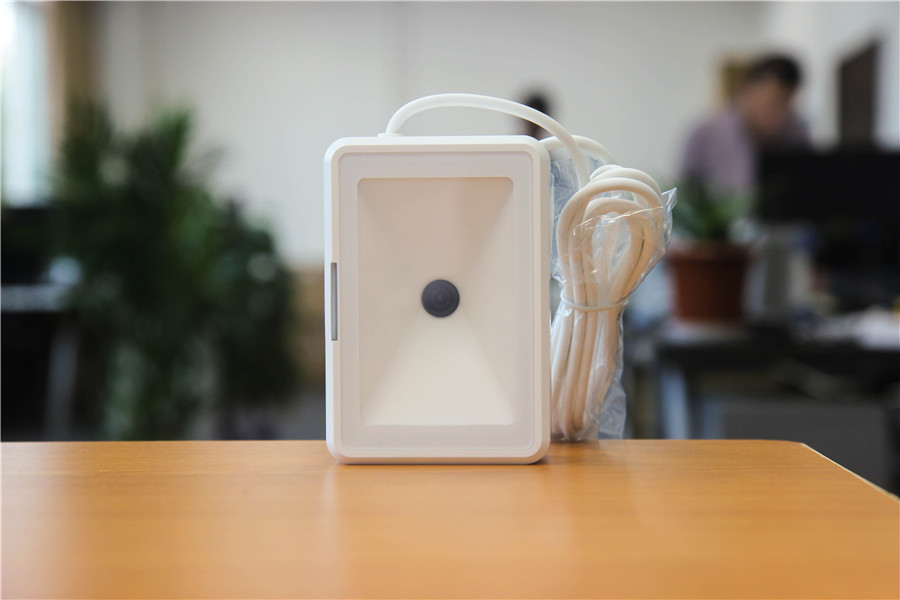

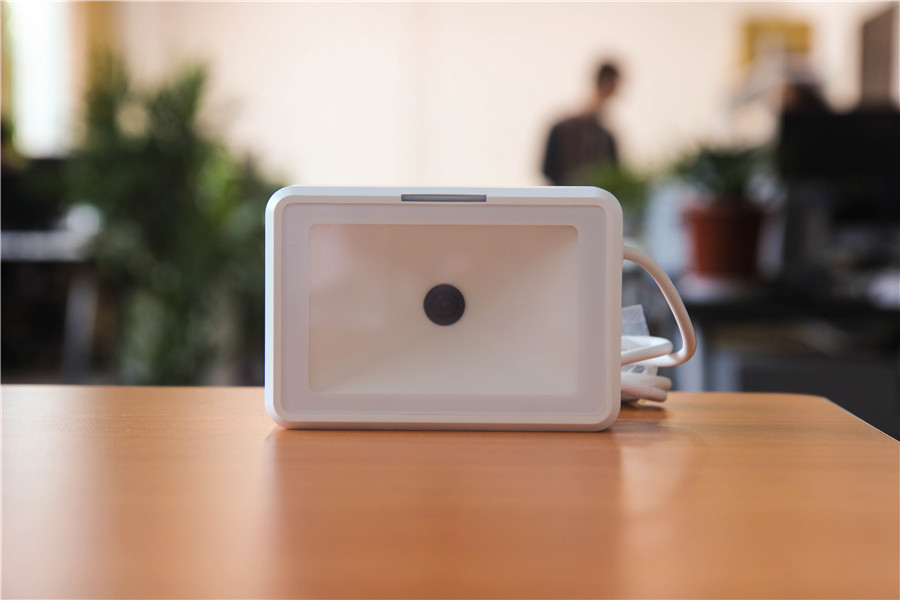

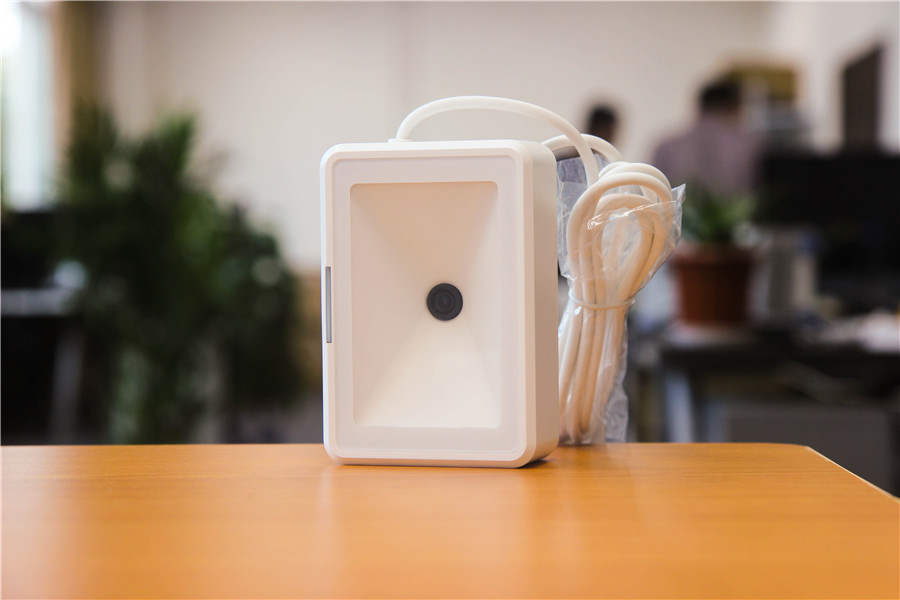

SuperLead 7100 Fixed 2D Barcode Reader QR Code Reader Phone payment Original Manufacturer

FOB Reference Price:Get Latest Price
US $150-350 / Units | 10 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Colour Depth:
16 Bit
Interface Type:
COM, PS/2, USB
Max Paper Size:
A4
Optical Resolution:
752x480
Scan Speed:
60fps
Brand Name:
Superlead
Model Number:
7100
Place of Origin:
Jiangsu, China (Mainland)
Color:
White
Type1:
2D Barcode Scanner for phone
Type2:
QR Code Scanner USB
Type3:

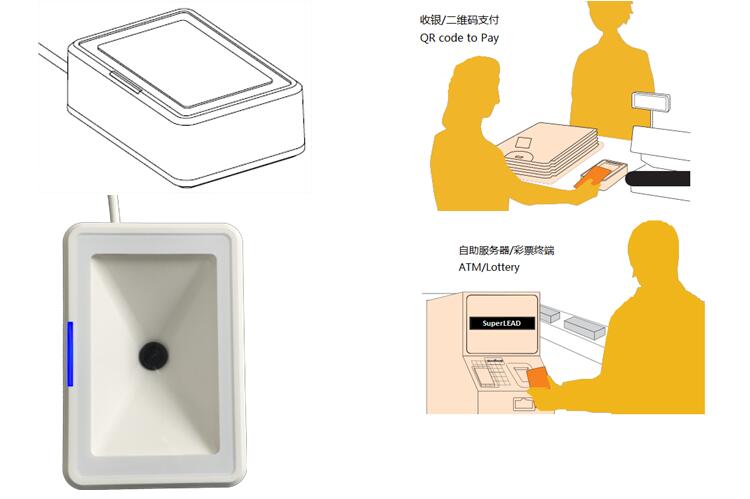

QR Code to Pay
Type4:
2d barcode reader
Type5:
qr code reader
Type6:
2d barcode reader
Type7:
barcode reader
Type8:
fixed barcode reader
Supply Ability
Supply Ability:
2000 Unit/Units per Month
Packaging & Delivery
Packaging Details
TBD
Port
Shanghai
SuperLead 7100 Fixed 2D Barcode Reader QR Code Reader Phone payment Original Manufacturer
SuperLead is professional original barcode scanner designer and manufacturer with strong R&D team.
Main products cover 1d/2d barcode scanner, 1d/2d scan engine, DPM scanner, wire/wireless Scanner,PDA .
We guarantee high quality with competitive price.
Value-added Service:

a. OEM branding is acceptable.

b. We can provide any customized service to our client.

c. Our R&D team is able to provide EWR(engineer work request) to our customer where necessary.








Physical Characteristics

Dimensions:

Minimum 20.6mmX12mmX15mm

Weight:

90g

Voltage and Current:

5 VDC

Current:

40mA (standby);  <2mA (Sleep mode)



Performance Characteristics

Light Source:

illumination: 5600K LED

Field of View:

115° (H) x 90° (V)

Roll / Pitch / Yaw:

360°, ±65°, ±60°

Print Contrast:

20% minimum reflective difference



Symbology Decode Capability





1-D:

UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of

5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat



2-D:

PDF417,   MicroPDF417,   Composite   Codes,Data   Matrix,   Maxicode,   QR   Code, MicroQR, Aztec

Minimum Resolution

5 mil Code39

Interfaces Supported:

USB, RS232

User Environment

Operating Temperature:

32° to 122° F / 0° to 50° C

Storage Temperature:

-40° to 158° F / -40° to 70° C

Humidity:

5% to 95%, non-condensing

Drop/Shock Specifications:

Withstands 10Gs 0.06" double amp

Ambient Light Immunity:

Immune to indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.
