Quick Details

  • Products Status: Stock
  • Type: Barcode Scanner
  • Scan Element Type: CMOS
  • Colour Depth: 16 Bit
  • Interface Type: COM, PS/2, USB
  • Max Paper Size: A4
  • Optical Resolution: 752x480
  • Scan Speed: 60fps
  • Brand Name: SuperMax
  • Model Number: 7200
  • Place of Origin: Jiangsu, China (Mainland)
  • Color: Black/White/TBD
  • Type1: barcode scanner
  • Type2: 2d barcode scanner
  • Type3: Barcode scanner 2d
  • Type4: android barcode scanner
  • Type5: 2d barcode reader
  • Type6: Handfree 2D Barcode Scanner
  • Type7: omni-directional Barcode Scanner
  • Type8: barcode scanner android

Packaging & Delivery

Packaging Details Inner: Plain brown box E-flute
Outer: Carton double B-flute 20 units per Carton or 40 units per Carton
Delivery Time Shipped in 3 days after payment

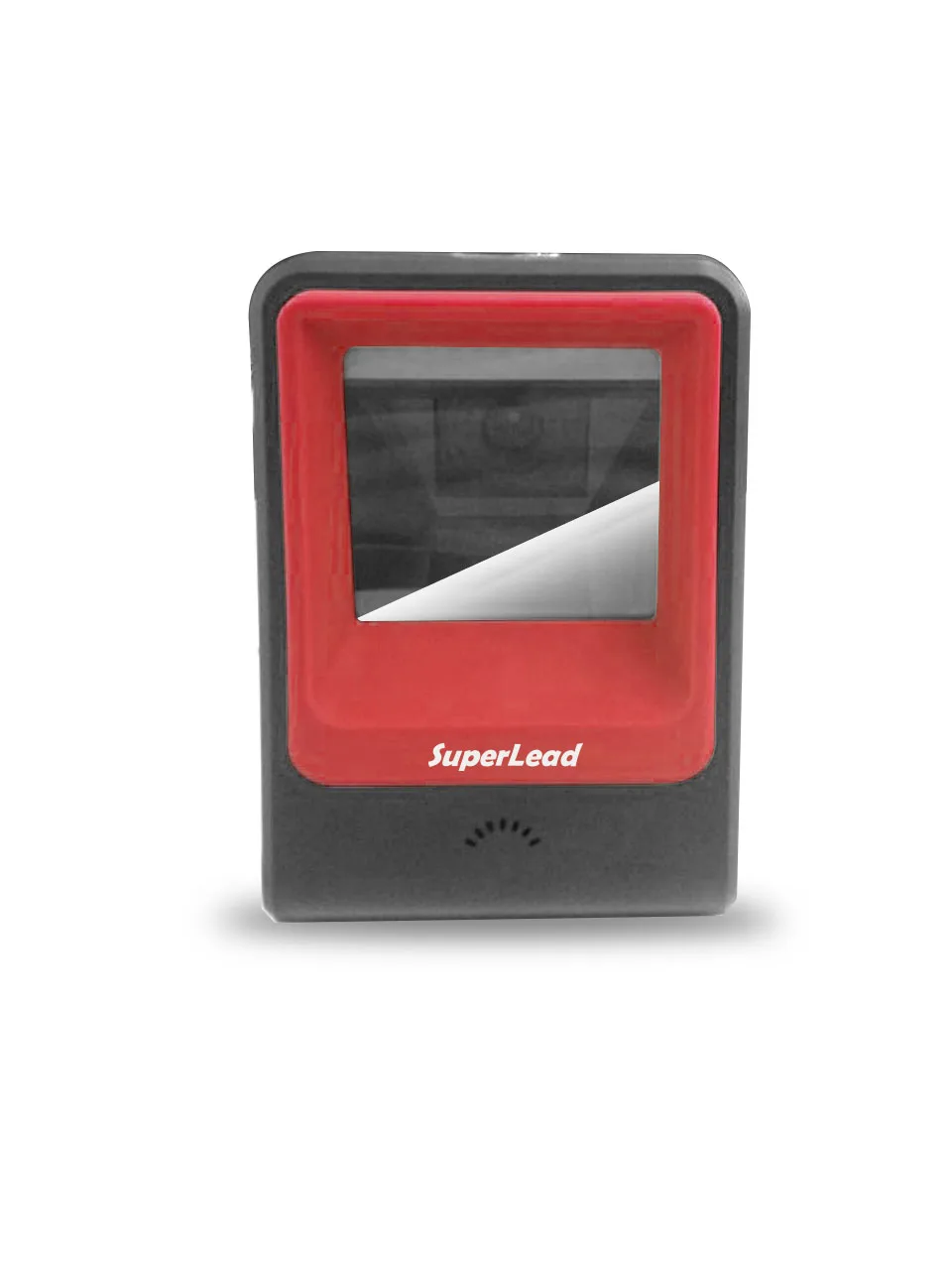

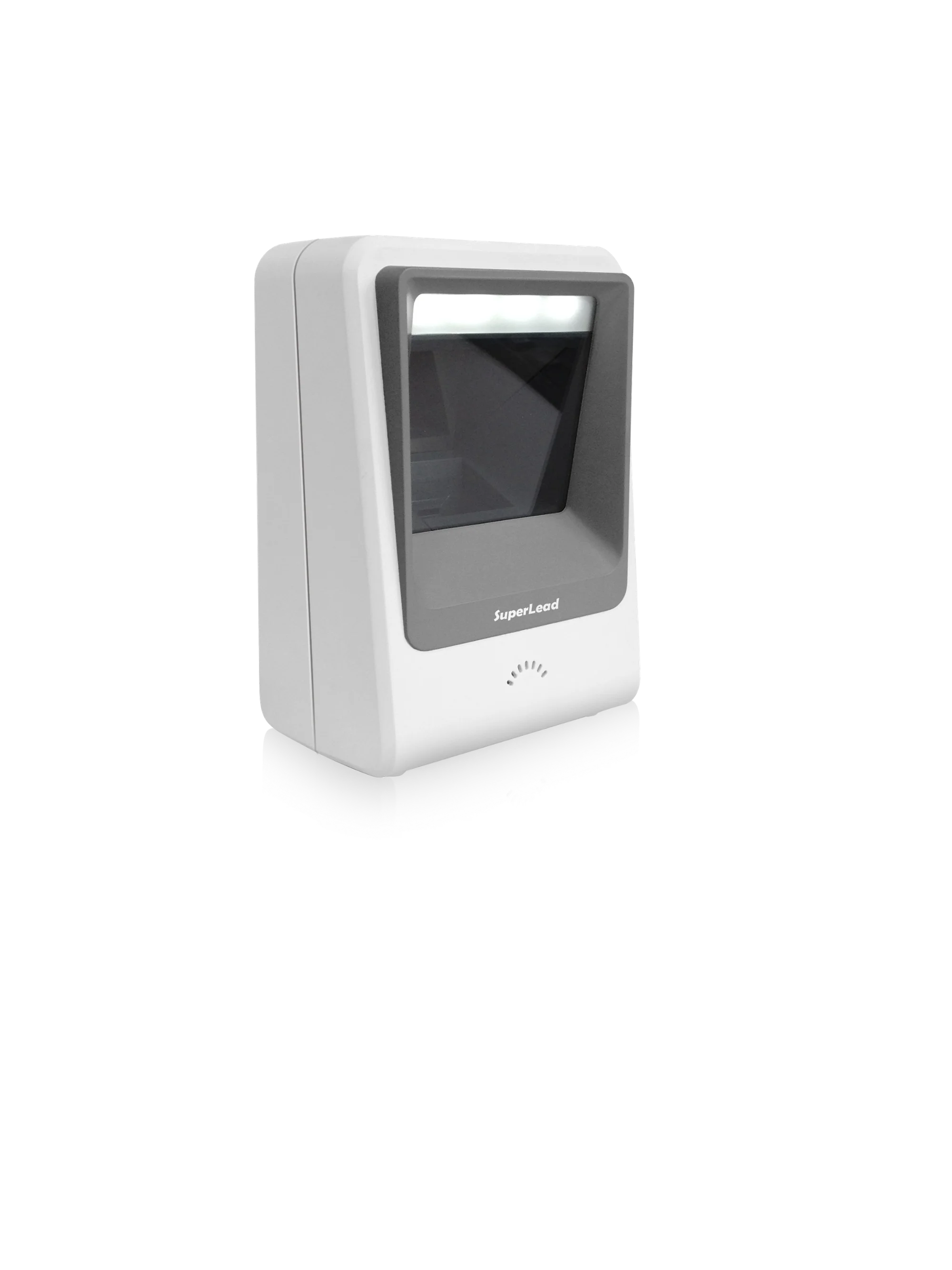

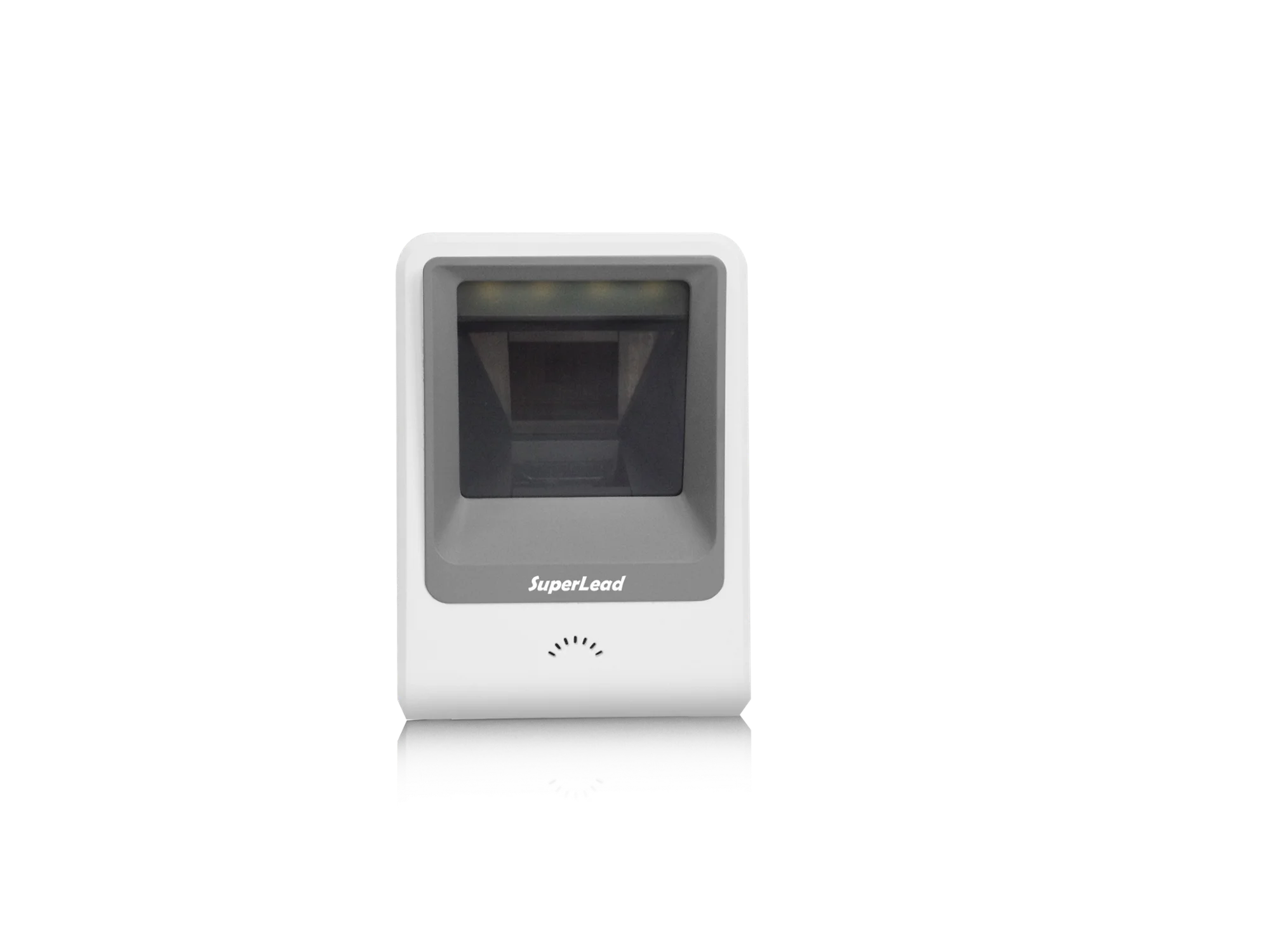

Superlead Handfree 2D Barcode Scanner omni-directional Barcode Scanner Platform Original Designer
Supermax is professional original barcode scanner designer and manufacturer with strong R&D team.
Main products cover 1d/2d barcode scanner, 1d/2d scan engine, DPM scanner, wire/wireless Scanner,PDA .
We guarantee high quality with competitive price.
Value-added Service:

a. OEM branding is acceptable.

b. We can provide any customized service to our client.

c. Our R&D team is able to provide EWR(engineer work request) to our customer where necessary.



Physical Characteristics

Dimensions:

105mmX146mmX70mm

Weight:

200g

Voltage:

5 VDC

Current:

400mA (Operating)

Performance Characteristics

Light Source:

illumination: 5600K LED

Field of View:

40° (H) x 25° (V)

Roll / Pitch / Yaw:

360°, ±65°, ±60°

Print Contrast:

20% minimum reflective difference

Symbology Decode Capability

1-D:

UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of

5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2-D:

PDF417,   MicroPDF417,   Composite   Codes,Data   Matrix,   Maxicode,   QR   Code, MicroQR, Aztec

Minimum Resolution

5 mil Code39

Interfaces Supported:

USB, RS232

User Environment

Operating Temperature:

32° to 122° F / 0° to 50° C

Storage Temperature:

-40° to 158° F / -40° to 70° C

Humidity:

5% to 95%, non-condensing

Drop/Shock Specifications:

Withstands 10Gs 0.06" double amp

Ambient Light Immunity:

Immune to indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.

Decode Ranges

Symbol & Density



Range

Code 39 (5 mil)



0mm-60mm

100%UPCA (13 mil)



0mm-200mm
