Quick Details

  • Products Status: Stock
  • Type: Barcode Scanner
  • Scan Element Type: CMOS
  • Colour Depth: 32 Bit
  • Interface Type: COM, PS/2, USB
  • Max Paper Size: A4 Color Contact Image Sensor
  • Optical Resolution: 640 H x 480 V
  • Scan Speed: 30fps
  • Brand Name: SuperMax
  • Model Number: SS-001
  • Place of Origin: Jiangsu, China (Mainland)
  • Interfaces: USB ,COM, PS2
  • type1: Handheld Barcode Scanner
  • type2: 2D Barcode Scanner
  • type3: Wireless Barcode Scanner
  • type4: barcode scanner
  • type5: barcode scanner 2d
  • type6: barcode scanner bluetooth
  • type7: 2d scanner
  • type8: barcode scanner wireless
  • type9: bluetooth barcode scanner

Packaging & Delivery

Packaging Details TBD

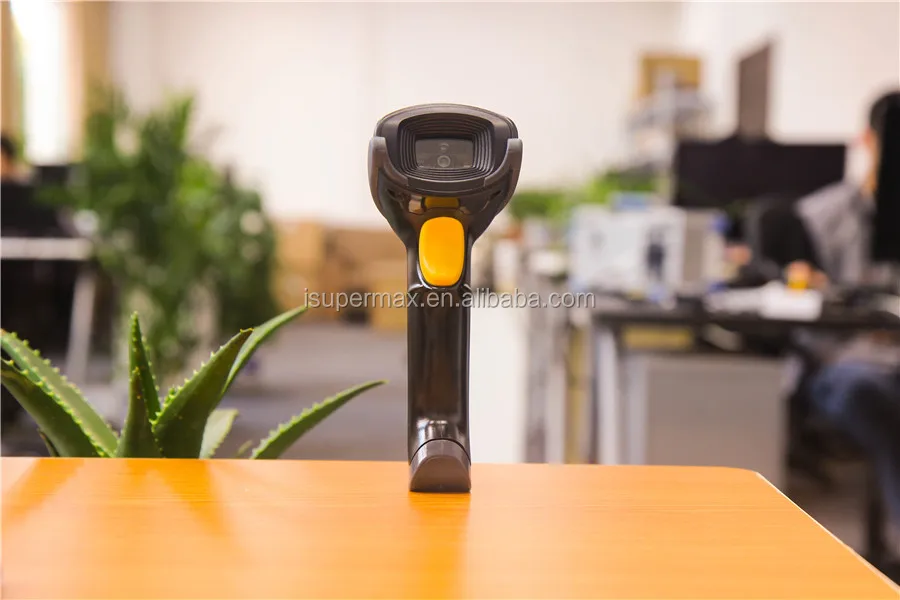

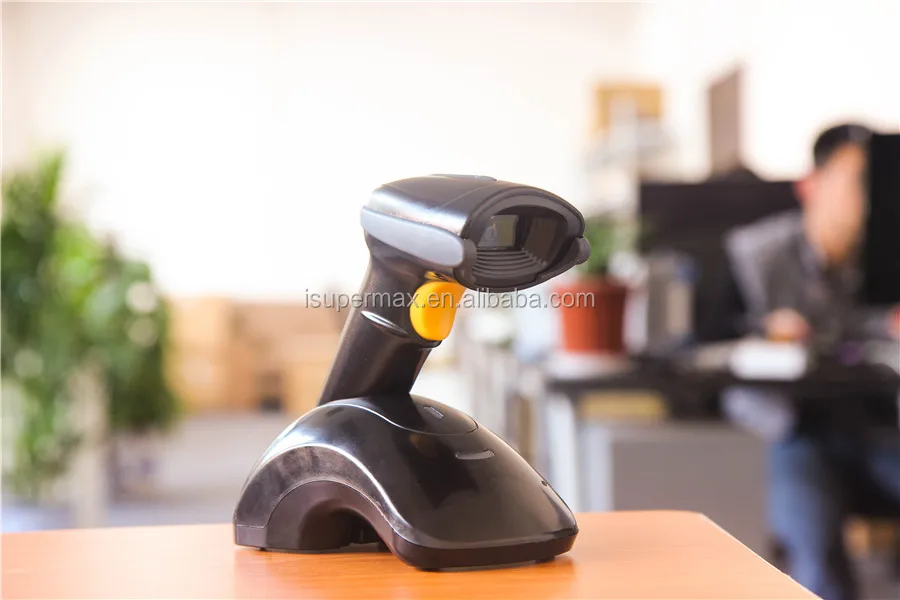

SuperLead 5130 Wireless Bluetooth 2D Barcode Scanner with memory Long distance Manual or auto Trigger High Quality
Supermax is professional original barcode scanner designer and manufacturer with strong R&D team.
Main products cover 1d/2d barcode scanner, 1d/2d scan engine, DPM scanner, wire/wireless Scanner,PDA .
We guarantee high quality with competitive price.
Value-added Service:

a. OEM branding is acceptable.

b. We can provide any customized service to our client.

c. Our R&D team is able to provide EWR(engineer work request) to our customer where necessary.



Related Hot-selling Products

Physical Characteristics
Dimensions:18 cm H x 10.7cm L x 7 cm W
Weight:160g
Voltage and Current:5 VDC +/-10% @ 400 mA
Performance Characteristics
Image (Pixels):640 pixels (H)x 480 pixels (V)
Light Source:Aiming: 617 nm LED; illumination: 625 nm LED
Field of View:40° (H) x 26° (V)
Roll / Pitch / Yaw:360°, ±65°, ±60°
Print Contrast:25% minimum reflective difference
Symbology Decode Capability
1-D:UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2-D:PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Motion Tolerances:up to  25 in. (63.5 cm) per second 2D barcode scanner
Interfaces Supported:USB, RS232
User Environment
Operating Temperature:32° to 122° F / 0° to 50° C
Storage Temperature:-40° to 158° F / -40° to 70° C
Humidity:5% to 95%, non-condensing
Drop/Shock Specifications:Withstands multiple 1.5m(6ft.) drops to concrete
Ambient Light Immunity:Immune to normal indoor lighting up to 1600 Lux.
Immune to sunlight up to 86,000 Lux.
Decode Ranges
Symbol & DensityRange
Code 39 (5 mil)40mm-110mm
100%UPCA (13 mil)5mm-280mm
COde 39 (20 mil)15mm-330mm
PDF417 (6.8mil)20mm-130mm
DataMatrix (10mil)10mm-110mm
QR Code (20mil)5mm-230mm
Resolution 1D Code 394.8mil (0.122mm)
Resolution 2D Data Matrix6.6mil (0.168mm)

Performance may be impacted by bar code quality and environmental conditions
