Mini Barcode Scanner Module Engine 1D CCD Barcode Scanner with USB/RS232

FOB Reference Price:Get Latest Price
US $1-20 / Unit | 10 Unit/Units (Min. Order)
Supply Ability:
5000 Unit/Units per Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
1D Barcode Scan Engine
Scan Element Type:
linear CCD
Colour Depth:
32 Bit
Interface Type:
COM, USB
Max Paper Size:
A4
Optical Resolution:
2500 pixels
Scan Speed:
300fps
Brand Name:
SUPERLEAD
Model Number:
1100
Place of Origin:
Jiangsu, China (Mainland)
Color:
Black
Type1:
1D barcode scanner
Type2:
1D Barcode Scanning Module
Type3:
1d barcode scanner engine
Type4:
ccd barcode scanner module
Type5:
1d ccd barcode scanner
Type6:
mini barcode scannner
Type7:
mini barcode scannner Module
Type8:
barcode scan engine
Type9:
barcode scan module
Packaging & Delivery
Packaging Details
TBD

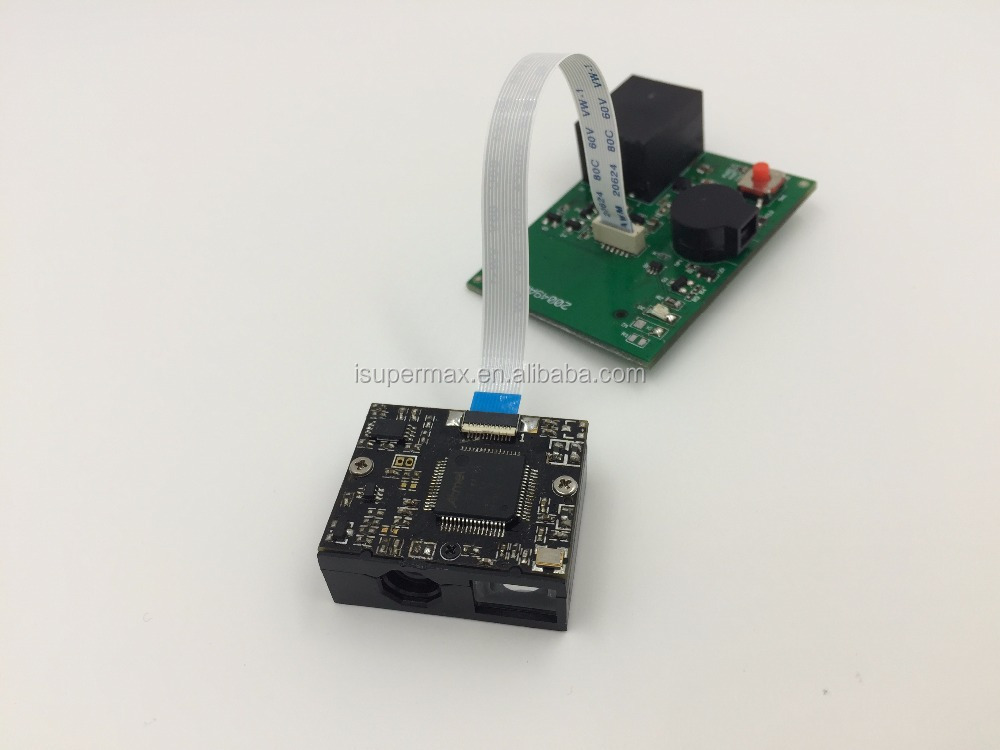

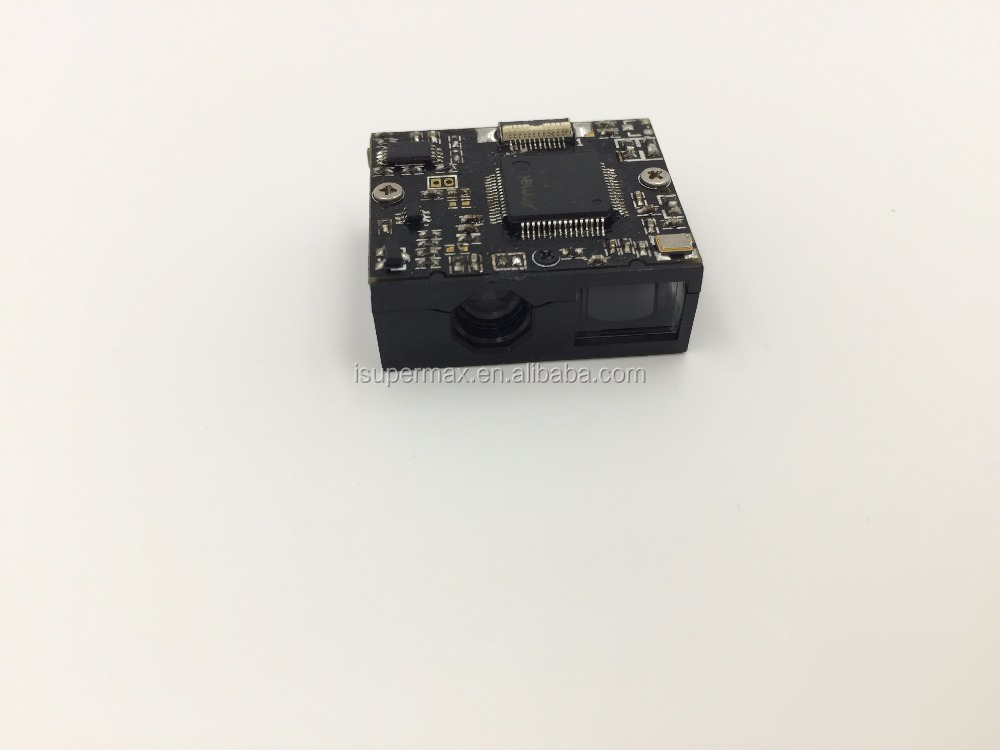

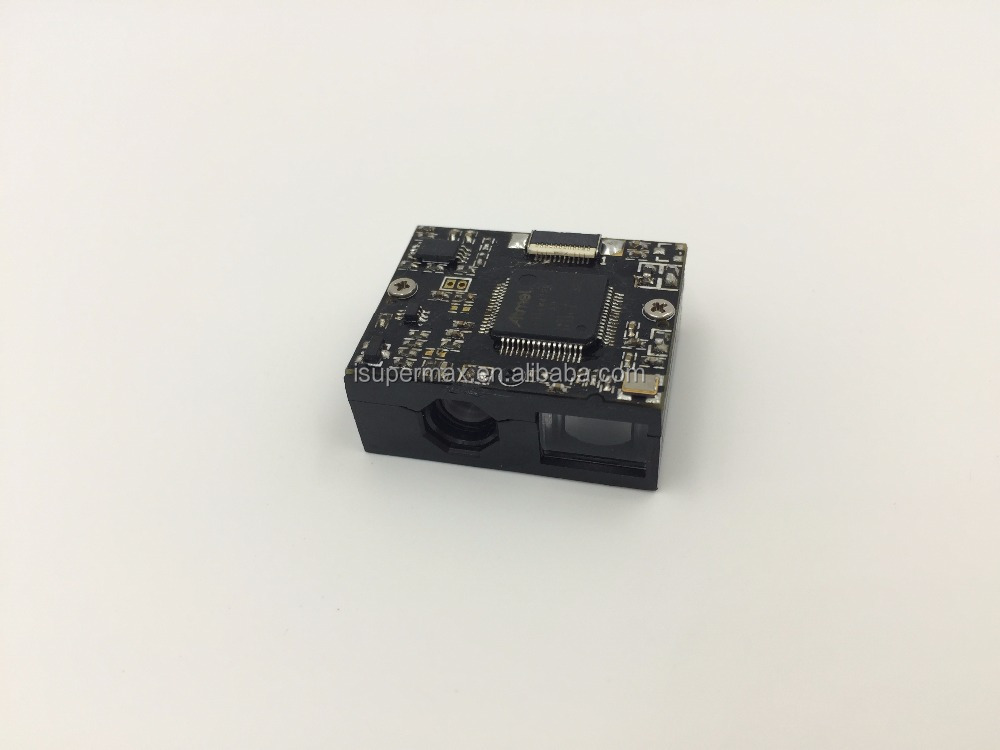

Mini Barcode Scanner Module/Engine 1D CCD Barcode Scanner with USB/RS232

a. OEM branding is acceptable.

b. We can provide any customized service to our client.

c. Our R&D team is able to provide EWR(engineer work request) to our customer where necessary.





Physical Characteristics

Dimensions:

30mmX24.8mmX12.5mm

Weight:

10g

Voltage :

3.3 VDC

Current :

25mA (standby);  60mA (Operating)

Performance Characteristics

Image (Pixels:

2500 pixels

Light Source:

Aiming& illumination: 617nm LED

Field of View:

45° H

Roll / Pitch / Yaw:

30°, ±65°, ±60°

Print Contrast:

25% minimum reflective difference

 Symbology Decode Capability





1-D:

UPC-A, UPC-E, EAN8, EAN13, ISSN, Telepen, China Post, Trioptic Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,  Codabar, MSI(Plessey), Chinese 2 of 5, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded , Industrial 2 of 5, Standard 2 of 5

Motion Tolerances:

up to   33 in. (100 cm) per second

Interfaces Supported:

USB, RS232



User Environment

Operating Temperature:

-20°C to 50° C

Storage Temperature:

 -40° to  80° C

Humidity:

5% to 95%, non-condensing

Drop/Shock Specifications:

Withstands 10Gs 0.06" double amp

Ambient Light Immunity:

up to 100,000 Lux.



Decode Ranges

Symbol & Density

                                        HD Focus

Code 39 (5 mil)

                                   60mm-160mm

100%UPCA (13 mil)

                                   30mm-400mm

Resolution 1D Code 39

                                   3mil (0.075mm)

Performance may be impacted by bar code quality and environmental conditions
