Quick Details

  • Products Status: Stock
  • Type: Barcode Scanner
  • Scan Element Type: CMOS
  • Colour Depth: 32 Bit
  • Interface Type: COM, USB
  • Max Paper Size: A4
  • Optical Resolution: 640 H x 480 V
  • Scan Speed: 50fps
  • Brand Name: SUPERLEAD
  • Model Number: 7100
  • Place of Origin: Jiangsu, China (Mainland)
  • Color: White
  • Type1: QR Code Scanner USB
  • Type2: QR Barcode Reader
  • Type3: Android Barcode Scanner

Packaging & Delivery

Packaging Details TBD

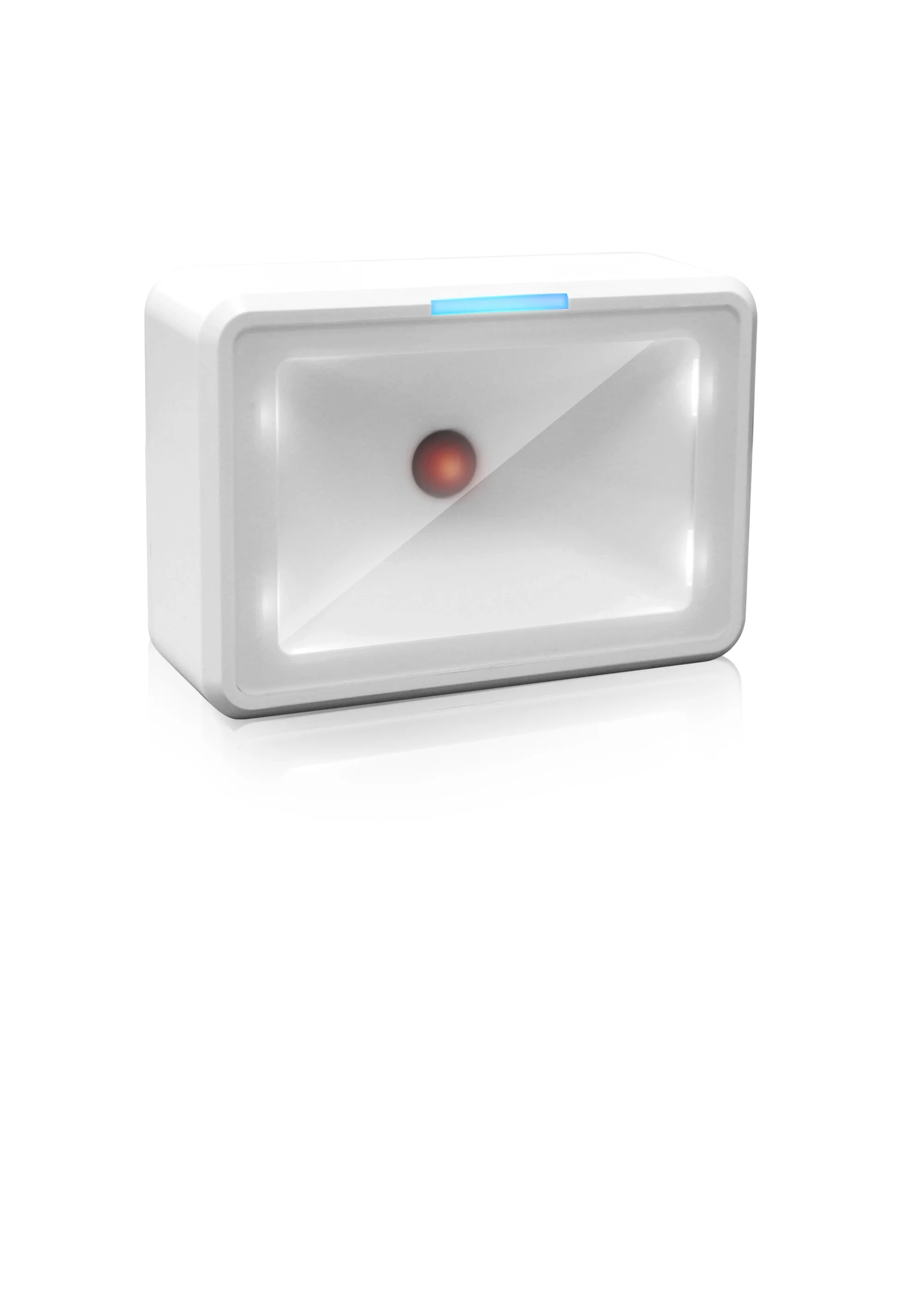

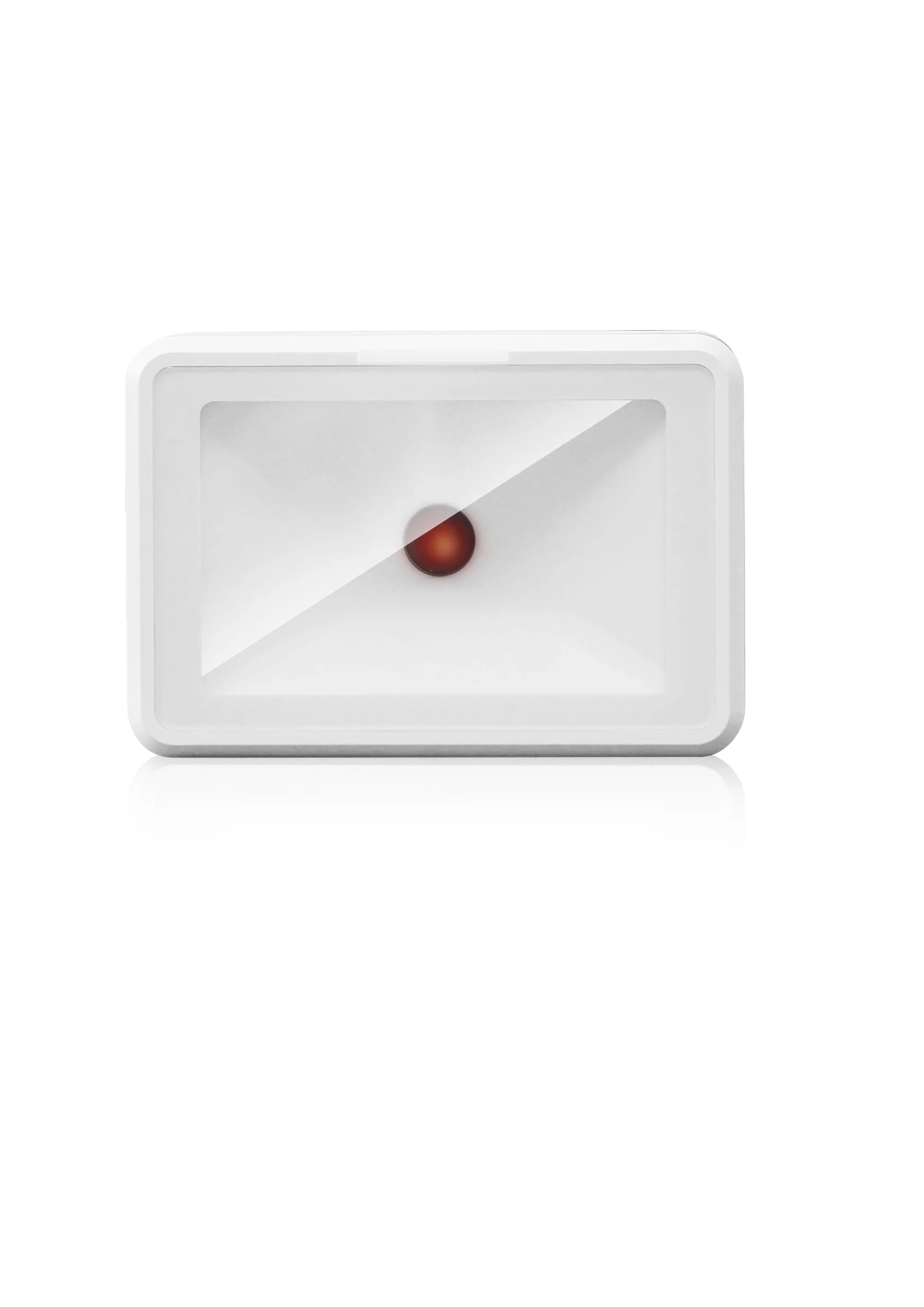

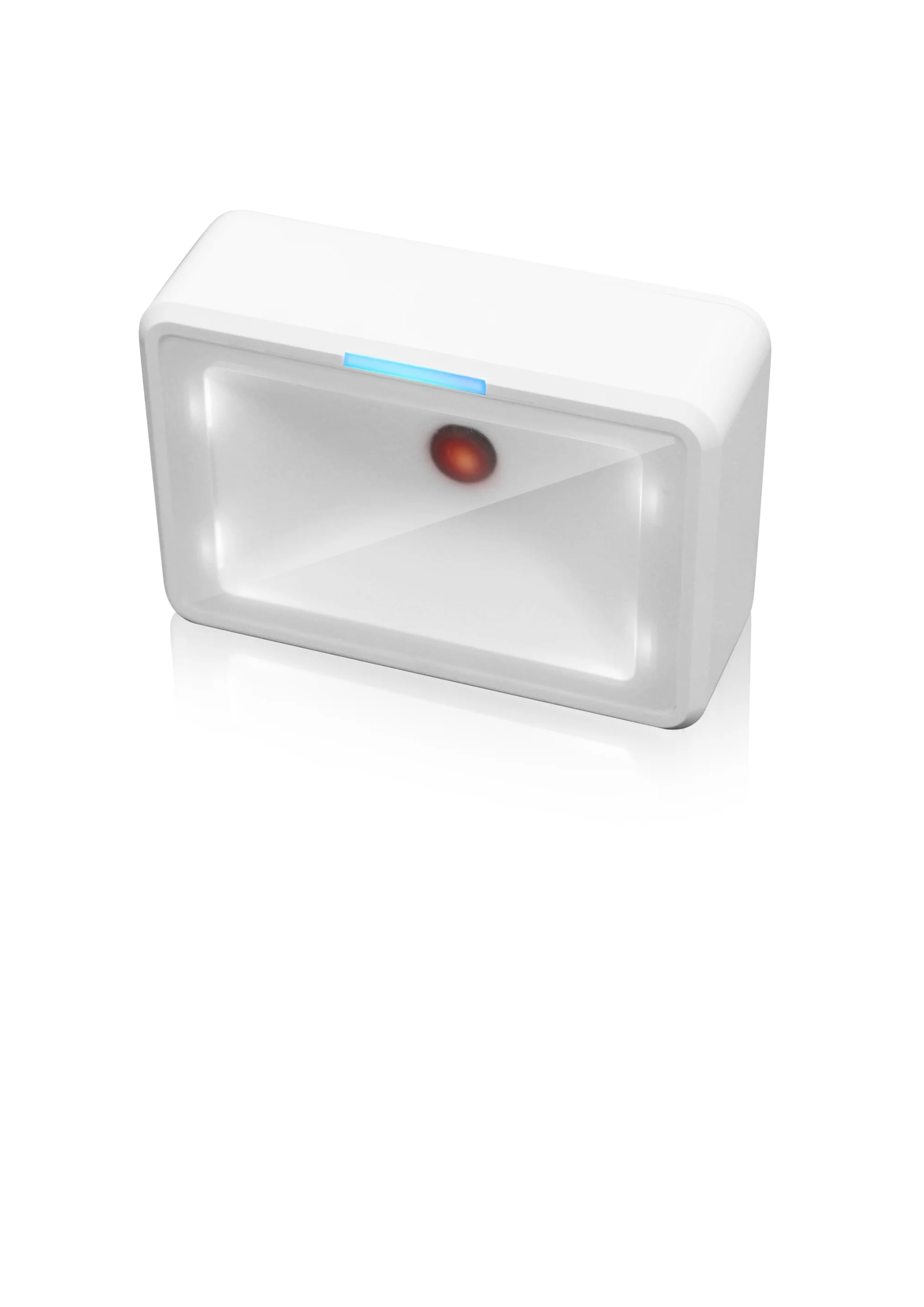

SuperLead 7100 Original Design QR Code Scanner USB 2D Barcode Reader Mobile Phone Screen Scan

a. OEM branding is acceptable.

b. We can provide any customized service to our client.

c. Our R&D team is able to provide EWR(engineer work request) to our customer where necessary.



Physical Characteristics

Dimensions:

Minimum 20.6mmX12mmX15mm

Weight:

90g

Voltage and Current:

5 VDC

Current:

40mA (standby);  <2mA (Sleep mode)



Performance Characteristics

Light Source:

illumination: 5600K LED

Field of View:

115° (H) x 90° (V)

Roll / Pitch / Yaw:

360°, ±65°, ±60°

Print Contrast:

20% minimum reflective difference



Symbology Decode Capability





1-D:

UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of

5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat



2-D:

PDF417,   MicroPDF417,   Composite   Codes,Data   Matrix,   Maxicode,   QR   Code, MicroQR, Aztec

Minimum Resolution

5 mil Code39

Interfaces Supported:

USB, RS232



User Environment

Operating Temperature:

32° to 122° F / 0° to 50° C

Storage Temperature:

-40° to 158° F / -40° to 70° C

Humidity:

5% to 95%, non-condensing

Drop/Shock Specifications:

Withstands 10Gs 0.06" double amp

Ambient Light Immunity:

Immune to indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.
